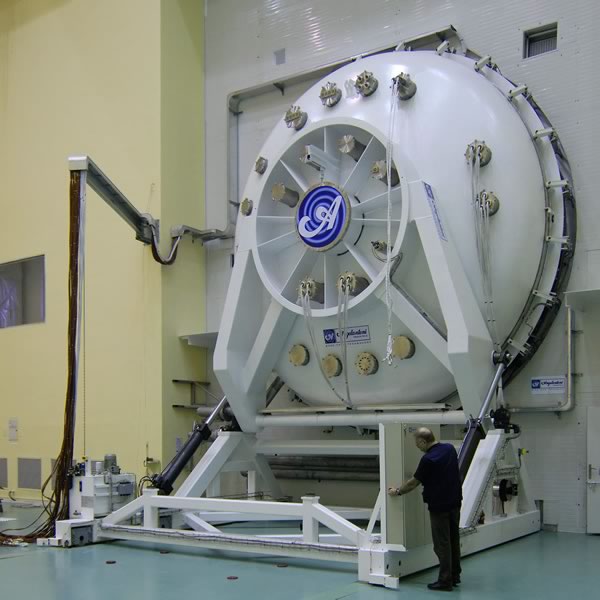

Thermal Vacuum Chamber HVT 240MC-190130 GN2/LN2
- Tests: High Vacuum, Temperature
- External dimensions (chamber only): 7200x16000x9000 mm (WxDxH)
- Internal useful dimensions: 5500×10000 mm (ØxL)
- Internal useful volume: 240 m3
- Temperature range: -190ºC/+130ºC
- Temperature variation rate:
- – 1ºC/min from +100ºC down to -100ºC
– 1ºC/min from -100ºC up to +100ºC
- Vacuum limit: 1×10-6 mbar
- Special features:
- – Door with tilting system for spacecraft loading
– Special trolley for Spacecraft loading on rails
– Internal monorail crane
– Spacecraft horizontality control system
